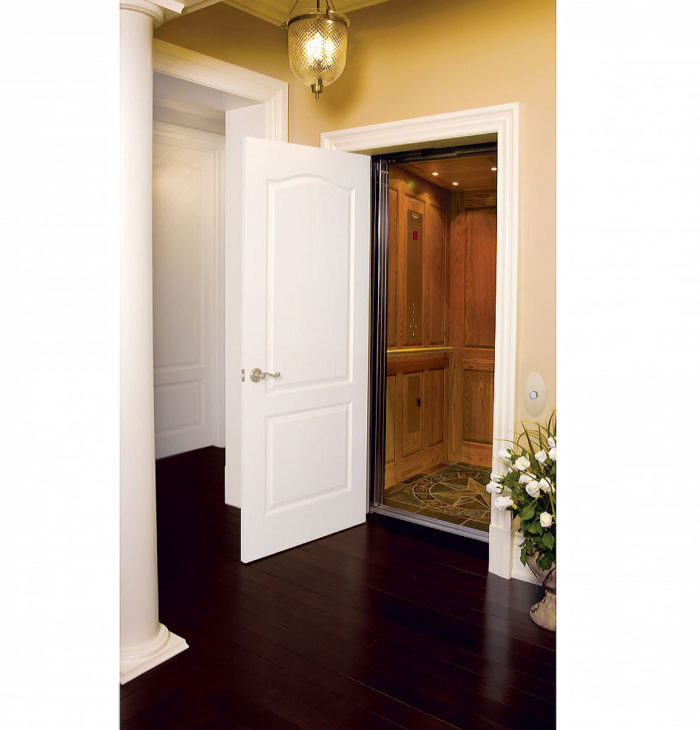

Savaria Eclipse

• Automatic cabin lighting with four halogen pot lights for comfort
• Energy-efficient variable speed motor drive and motor brake for safe travel
• Emergency stop switch in cabin in the event of catastrophic failure
• Battery-operated emergency lowering and manual emergency lowering hand crank in the event of power failure
• Lockable control panel to prevent usage from children or any other unwanted users
• Slack-chain brake system for security when stopping
• In-use indicator lights on hall station to alert others of operation
• Modular rail sections for quick installation
• Accessible service panel that can be located inside or outside the hoistway for easy maintenance
• Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to manufacturer’s warranty

• Maximum lift height: 50’ (15.24 m)
• Maximum number of stops: 6
• Minimum pit depth: 6” (152.4 mm)
• Maximum speed: 40 fpm (0.20 m/s)
• Power supply required: 230V 1 phase 60 Hz
• Drive/motor: 2 hp with geared roller chain, variable frequency drive

Options:

• Alphanumeric button marking – Buttons are labeled with letters and symbols, offering an alternative system for operation understanding
• Buffer springs – Provides padding when descending for extra layer of safety
• Cabin ceiling finish – Two different finishes for added style:
  • Standard architectural white
  • White MDF

Additional option to match cabin ceiling finish to wall finish

• Cabin configurations – Five different cabin configurations for optimum customization:

• Cabin gate style – Five different styles for optimum customization:
  • Clearfold style – clear anodized frame with clear acrylic inserts
  • Panelfold styles:
    • Clear anodized frame with clear acrylic inserts
    • Anodized bronze with bronze acrylic inserts
  • Visifold style – bronze frame with bronze acrylic inserts
  • Savaria automatic slim doors (requires 84” (2134 mm)-tall cabin)
• Cabin lights finish – Four different finishes for added style:
  • Recessed brass down lights
  • Recessed bronze anodized aluminum down lights
  • Recessed clear anodized aluminum down lights
  • Recessed stainless steel down lights
• Cabin operating panel finish – Four different finishes for added style:
  • Brass
  • Bronze anodized aluminum
  • Clear anodized aluminum
  • Stainless steel
• Cabin sizes – Four different cabin sizes for optimum customization:
  • 36” x 48” x 80” (914 mm x 1219 mm x 2032 mm)
    • Compatible with cabin configuration types 1, 2, 3, 4 and 5
  • 36” x 54” x 80” (914 mm x 1371 mm x 2032 mm)
    • Compatible with cabin configuration types 1, 2, 3, 4 and 5
  • 36” x 60” x 80” (914 mm x 1524 mm x 2032 mm)
    • Compatible with cabin configuration types 1, 2, 3, 4 and 5
  • 40” x 54” x 80” (1016 mm x 1372 mm x 2032 mm)
    • Compatible with cabin configuration types 1, 2, 3, 4 and 5

Additional option for custom cabin sizes, up to 15 square feet

• Cabin walls finish – 20 different finishes in six different materials for added style:
  • White MDF
  • Luxury routered white MDF
  • Melamine finishes:
    • Dark Cherry
    • Cherry
    • Candlelight
    • Red Oak
    • Silken Maple
    • Antique White
  • Unfinished veneer finishes:
    • Oak
    • Cherry
    • Maple
    • Birch
  • Red oak raised hardwood finishes:
    • Autumn
    • Cordoba
    • Walnut
  • Maple raised hardwood finishes:
    • Bamboo
    • Merlot
    • Nutmeg
  • Cherry raised hardwood finishes:
    • Bamboo
    • Cordoba
    • Walnut
  • Digital display hall calls – High-tech display offers sleek alternative to button hall calls
  • Hall call station finish – Four different finishes for added style:
    • Brass
    • Bronze anodized aluminum
    • Clear anodized aluminum
    • Stainless steel
  • Higher maximum lift height – Where code permits, 60’ (18.29 m)
  • Higher maximum speed – Where code permits, 50 fpm (0.25 m/s)
  • Interlocks – Choice of Kwiklock or EMI-Porta elevator door interlocks to ensure secure travel
  • Internal cabin height – Two different internal cabin heights for optimum customization:
    • 84” (2134 mm) – minimum overhead clearance: 96” (2438 mm)
    • 96” (2438 mm) – minimum overhead clearance: 108” (2743 mm)
  • Keyed hall station – Locks the hall station to prevent usage from children or any other unwanted users
  • Power gate and power door operator – Enables gate and door to open and close automatically with no manual effort for easy boarding and exiting
  • Telephone cabinet and finish – Cabinet encloses telephone for storage. Four different finishes for added style:
    • Bronze anodized aluminum
    • Recessed brass
    • Recessed clear
    • Stainless steel
  • Weight capacity – Three different weight capacities for optimum customization:
    • 750 lbs (340 kg)
    • 950 lbs (431 kg)
    • 1000 lbs (454 kg)
