Savaria Telecab

• Continuous pressure push buttons in cabin and hall call station for easy operation
• Safety sensors under cabin pan for obstruction detection
• Detector built into roof to stop cab from moving when it senses pressure on top of the unit
• Emergency stop switch in cab and alarm in the event of catastrophic failure
• Battery-operated emergency lowering in the event of power failure
• Telephone for communication from the cabin
• Non-skid platform for wheelchair or powerchair balance
• Pressure relief valve to prevent platform overload
• Electromechanical door locks to ensure safe travel
• Slack-chain safety device for security in case of emergency
• Travels through a floor cut-out for minimal home construction

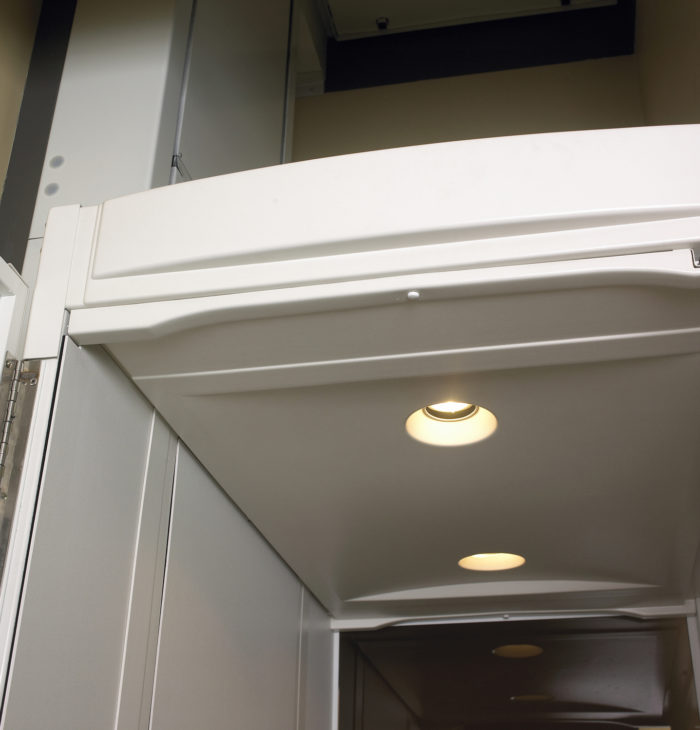

• Two cabin lights for comfort
• White powder-coated finish for added style
• Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to manufacturer’s warranty

• Weight capacity: 500 lbs (227 kg)
• Maximum lift height: 20’ (6 m)
• Maximum number of stops: 2
• Maximum speed: 20 fpm (0.10 m/s)
• Minimum floor cut-out: 36” x 60.5” (914 mm x 1537 mm)
• Power supply required: 120 VAC, 3 hp gear type
• Drive/motor: 2:1 roller chain hydraulic

Options:

• Battery power for up/down – Up and down controls battery powered, allowing for operation even in power failure
• Cabin configurations – Three different cabin configurations for optimum customization:

• Cabin sizes – Four different cabin sizes for optimum customization:
  • 30” x 46” x 78” (762 mm x 1168 mm x 1981 mm)
    • Compatible with cabin configuration type 5
  • 32” x 53” x 78” (813 mm x 1346 mm x 1981 mm)
    • Compatible with cabin configuration type 5
  • 30” x 47” x 78” (762 mm x 1194 mm x 1981 mm)
    • Compatible with cabin configuration types 1 and 2
  • 32” x 54” x 78” (813 mm x 1372 mm x 1981 mm)
    • Compatible with cabin configuration types 1 and 2
  • Cabin walls finish – Cabin walls can be painted in custom color powder coat for added style
  • Flush or surface mount call send station – Call send station flush or surface mounted for added style
  • Hydraulic door closer – Closes door with no manual effort to ensure a secure cabin during travel
  • Motorized door operation – Enables door to open and close with no manual effort for easy boarding and exiting
  • Two-door, for left and right access – One door on left side of cabin and one door on right side, creating two points of entry and exit
  • Window panels finish – Two different finishes for added style:
    • Bronze acrylic
    • Clear acrylic
  • 24-volt DC battery operator model – DC battery model allows for operation even in power failure
