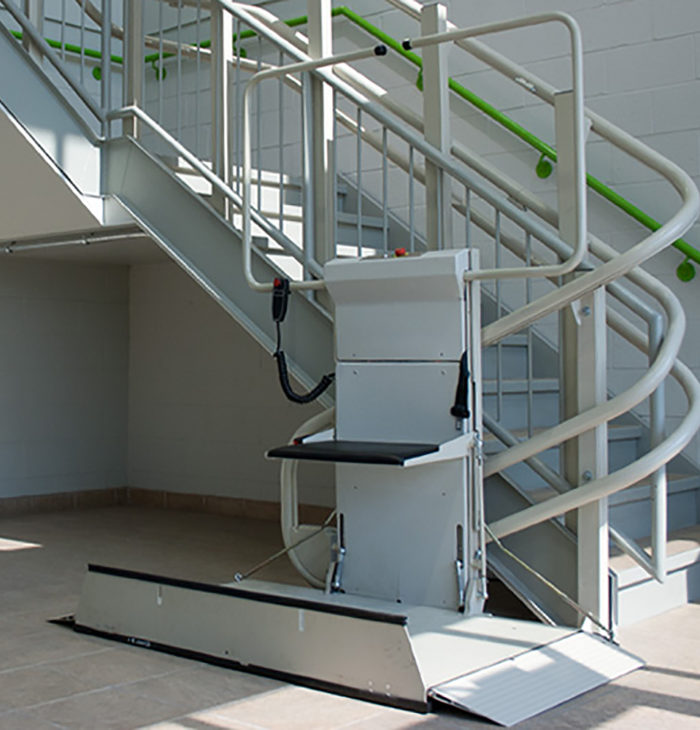

The Savaria Omega inclined platform is designed for access over stairs with multiple levels, curves or intermediate landings. This lift carries a passenger with wheelchair up and down stairs by travelling along a rail system mounted alongside the stairs.

An alternative to an elevator or vertical platform lift, the Omega requires minimal construction. The foldaway platform allows full access to the stairs when the lift is not in use. Flexible for many types of installations, including inside and outside curves, spiral stairs and multiple levels, the Savaria Omega is custom built to your specifications. The available ADA-compliant platform includes a fold out seat and audio visual movement alarm to meet public building access requirements

Request a Free Consultation

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Name*
  • Weight Capacity: 550 lbs (250 kg) Canada, 660 lbs (300 kg) USA
  • Powered by 240 V standard wall outlet
  • Installation is customizable to any specification, and avoids any significant changes to your home
  • Sensor systems on the platform prevent collision with objects going up and down the stairs, reducing the risk of injury or damage to your home or the lift
  • ADA-compliant platform for commercial use
  • Visible components are kept out of sight, and the motor is installed at the top landing; eliminating the requirement for a machine room
  • Sleek design enables little obstruction of daily activities and enables full access of the stairs
  • Automatic arms and ramps allow for easy access onto the lift, and safety once boarded
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s 36-month Parts Warranty
  • Drive: 1 hp (0.75 kW)
    • 3hp (2.2 kW) over 30 m
  • Power Supply: 240 V AC wall outlet
  • Dual Modular rail system
  • Gradient: Changing, with or without landings and turns, up to 55˚
  • Weight Capacity:
    • US: 660 lbs (300 kg)
    • Canada: 550 lbs (250 kg)
  • Maximum travel Distance: 164′ (50 m)
  • Nominal Speed: 12 ft/min (0.06 m/s)
  • Safety Features:
    • Sensor systems that detect obstacles on all sides of the lift
    • Pedestrian warning light to warn oncoming people of the lifts use
    • Onboard pressure buttons to control lift ensuring that the passenger is in control
    • Non-skid platform with safety flaps
    • Overspeed governor to ensure that the lift does not exceed its nominal limit
    • Manual lowering device in the event that power is lost
    • Power folding safety arms that retract with the push of a button, allowing for easy access onto the ramp and security once on board
    • Emergency stop button to cease movement of the lift in the event of emergency
  • Omega Inclined Platform Lift Standard sizes:
    • W30.5″ x L49.2″ (775 x 1250 mm)
    • W28.3″ x L35.4″ (720 x 900 mm)
  • Key switch – Deactivates the lift to prevent usage from children or any other unwanted users
  • Hideaway parking – Out-of-the-way docking station provides convenient, space-saving parking when not in use
  • Platform size options
    • 30.5″ x 49.2″ (775 mm x 1250 mm)
    • 28.3″ x 35.4″ (720 mm x 900 mm)
  • Pedestrian warning light and movement alarm – Alerts non-users to lift’s activity. Required to be compliant to ADA standards and building access requirements
  • Fold-down seat – Platform equipped with optional, fold-down seating during travel. Required to be compliant to ADA standards and building access requirements. Seat weight capacity: 330 lbs (150 kg)
  • Cold-weather stabilizer – Improves lift performance when lift operates in temperatures below 20 degrees Fahrenheit (-7 degrees Celsius)
  • Optional configurations
    • Vertical bend
    • Steep start
    • Special bends
    • Can be configured on both inside and outside of stairs
      • Inside turn: 90-degree, 180-degree
      • Outside turn: 90-degree
  • Finishes
    • Stainless Steel
    • Light gray
