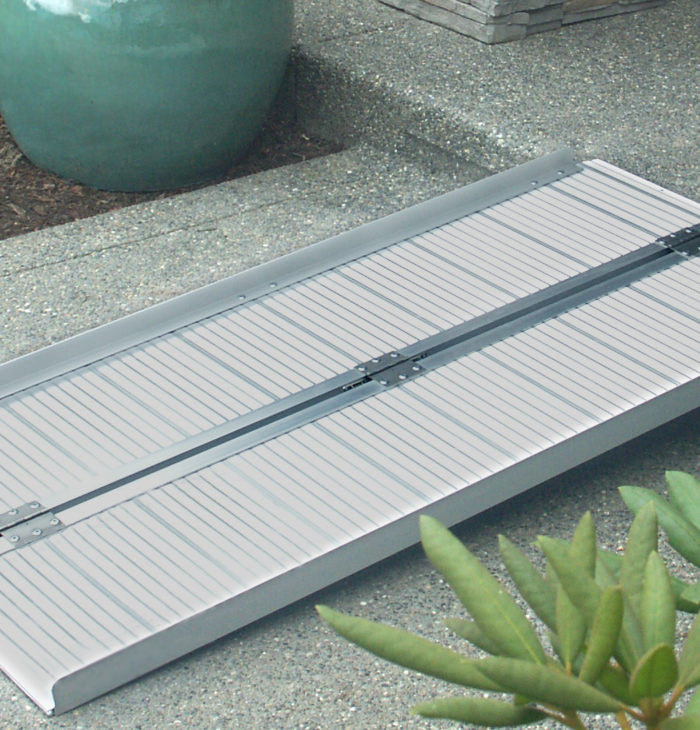

Ergonomically designed for easy toting, the Suitcase Ramp can assist in getting up and down stairs, raised landings, vehicles – or all three! This single-fold ramp becomes two lightweight sections when its hinge pins are removed, and it can accommodate one or two axles. The ramp also features reflective safety straps and a bottom traction plate for uneven ground transitions.
| Item Number | Length | Width | Folded Size | Weight | Capacity** |
| SFW230* | 2′ | 30″ | 24″ x 16″ x 4⅞” | 10 lbs. | 800 lbs. |
| SFW330 | 3′ | 30″ | 36″ x 16″ x 4⅞” | 15 lbs. | 800 lbs. |
| SFW430 | 4′ | 30″ | 48″ x 16″ x 4⅞” | 20 lbs. | 800 lbs. |
| SFW530 | 5′ | 30″ | 60″ x 16″ x 4⅞” | 24 lbs. | 800 lbs. |
| SFW630 | 6′ | 30″ | 72″ x 16″ x 4⅞” | 28 lbs. | 800 lbs. |
| SFW730 | 7′ | 30″ | 84″ x 16″ x 4⅞” | 34 lbs. | 800 lbs. |
| SFW830 | 8′ | 30″ | 96″ x 16″ x 4⅞” | 46 lbs. | 800 lbs. |
*Handle not included on SFW230. ** Maximum ramp capacity: 400 lbs. (one axle) – 800 lbs. (two axles)
